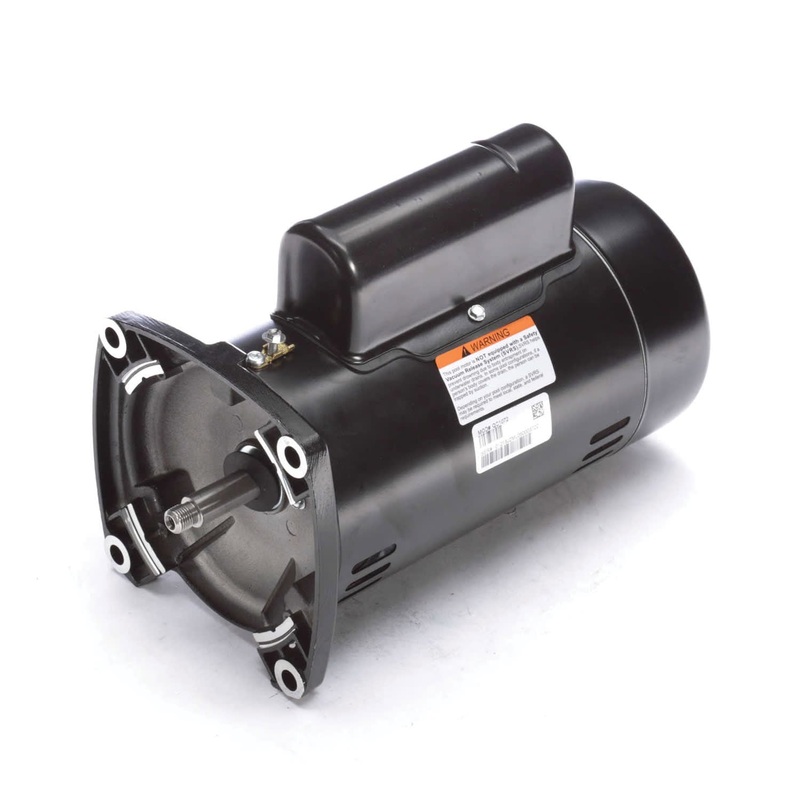

Discover the powerful CENTURY 2.5 HP Motor with a 56J Threaded Shaft, designed for high efficiency and reliability. This 230V, single-phase motor features a 2.5 effective horsepower with a service factor of 1.0, delivering optimal performance. With a 10.5 amp draw, this motor is ideal for various applications. It includes a 25 MF, 370V run capacitor mounted on the back for enhanced durability. The motor dimensions are 11 1/2″ in length, 6 1/2″ in diameter, and includes a 2 1/2″ shaft with 4 mounting holes spaced 5 7/8″ apart. Perfect for industrial and commercial use, this motor combines power with precision.

Bullets:

• Model: CENTURY 2.5 HP Motor, 56J Frame
• Catalog Number: B231SE
• Part Number: 10-184984-03
• Horsepower: 2.5 HP
• Service Factor: 1.0
• Effective Horsepower: 2.5
• Voltage: 230V, Single Phase
• Amp Draw: 10.5 amps at 230V
• Dimensions:
  • Length: 11 1/2 inches
  • Diameter: 6 1/2 inches
  • Shaft Length: 2 1/2 inches
• Mounting:
  • Mounting Holes: 4 holes, 5 7/8 inches center to center
• Capacitor: 25 MF, 370V run capacitor (current model)
• Mounting Position: Capacitor mounted on the back of the motor
